Dorset 23" Lowboy TD055 Ch= Series 11

Dorset 23' Lowboy TD055 Ch= Series 11; Astor brand, Radio (ID = 2006264) TV Radio

Dorset 23' Lowboy TD055 Ch= Series 11; Astor brand, Radio (ID = 2006265) TV Radio

Dorset 23' Lowboy TD055 Ch= Series 11; Astor brand, Radio (ID = 2006266) TV Radio

Dorset 23' Lowboy TD055 Ch= Series 11; Astor brand, Radio (ID = 2006267) TV Radio
Use red slider bar for more.
Dorset 23' Lowboy TD055 Ch= Series 11; Astor brand, Radio (ID = 2006264) TV Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1970 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 6: 6GW8 6GV8 6CM5 6AL3 1S2 AW59-11W
Semiconductors (the count is only for transistors) 16: AT342 AT342 AT338 AT343 AT343 AT343 AT338 AT321 AT321 AT350 AT321 AT321 AT321 AT318 AT321 AT350 AD4004 AD4004 AD4004 AD4004 AZ-069 1N295 1N66 1N66 AD411 1N295 1N295
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 230-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Dorset 23" Lowboy TD055 Ch= Series 11 - Astor brand, Radio Corporation
Shape Console, Lowboy (legs < 50 %).
Literature/Schematics (1) - - Manufacturers Literature (Astor Series 11 Data Sheet.)

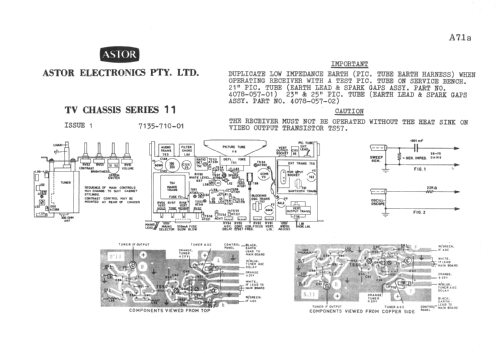

Literature/Schematics (2) -- Schematic (J. R. Publications "Television Service Handbook" page A71a)

Model page created by Martin Kent. See "Data change" for further contributors.
