DQR (HQR Chassis)

DQR ; Astor brand, Radio (ID = 1234096) Radio DQR ; Astor brand, Radio (ID = 1234097) Radio
DQR ; Astor brand, Radio (ID = 1234098) Radio
Use red slider bar for more.
DQR ; Astor brand, Radio (ID = 1234096) Radio
Astor brand, Radio: DQR [Radio] ID = 1234096 277x265
Select picture or schematic to display from thumbnails on the right and click for download.
For model DQR (HQR Chassis), Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Manufacturers literature

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6N8 6AV6 6AQ5 6V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-220; 221-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: DQR - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

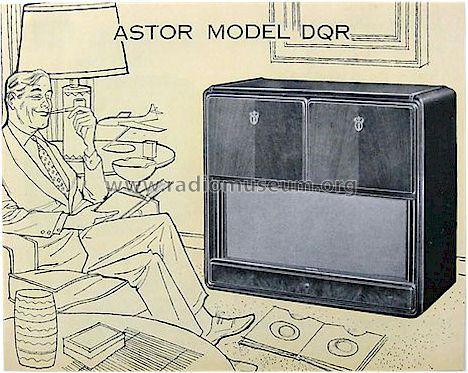

"The Gramo-Radio combination model "DQR" is a model "HQR" receiver chassis fitted into into a different type cabinet.

This model had four band spread short wave ranges covering the 49, 31, 25 and 19m bands. The record changer is a 3-speed Collaro type 3RC531 or 3RC54.

Cabinet finishes available in Walnut, Rose Mahogany, Brown Mahogany & Light Walnut.

Price in first year of sale 115.50 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin, DQR-1, 30/6/1955.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series, 1963, Page A36.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 67.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
