• Country
• Australia

• Manufacturer / Brand
• Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

• Year
• 1969/1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 277092

• • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• WC334AT AD100_Anodeon

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Playgram GB024 [Series 1] - Astor brand, Radio Corporation

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.25 x 11.25 x 5.25 inch / 362 x 286 x 133 mm

• Notes

• This portable (has a carrying handle) record player uses a single I.C. audio amplifier.

  "Comes to you in a range of soul stirring combination-colours that go with today's living."

  Colours available: Old Gold/Olive, Squirrel/Charcoal, Sunflower/Mocca & Tangerine/Flame.

• Price in first year of sale
• 45.00 AUS $

• Literature/Schematics (1)
• - - Manufacturers Literature (Astor Model GB024 Series 1 & 2, 28/10/1969.)

• Literature/Schematics (2)

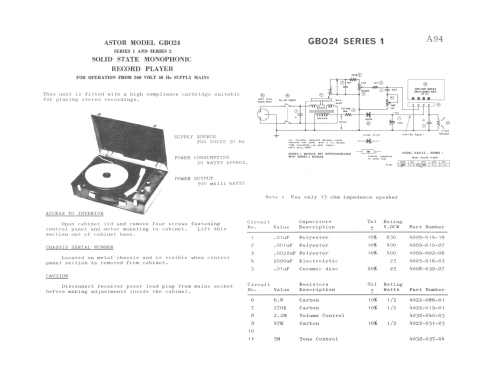

• J.R. Publications Transistor Radio Service Handbook (Group G7, 1970, Page A94.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
