Granada 23" TB023 Ch= Series 11A

Granada 23' TB023 Ch= Series 11A; Astor brand, Radio (ID = 2006613) TV Radio
Use red slider bar for more.
Granada 23' TB023 Ch= Series 11A; Astor brand, Radio (ID = 2006613) TV Radio
Astor brand, Radio: Granada 23" TB023 Ch= Series 11A [TV Radio] ID = 2006613 1400x782
Select picture or schematic to display from thumbnails on the right and click for download.
For model Granada 23" TB023 Ch= Series 11A, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

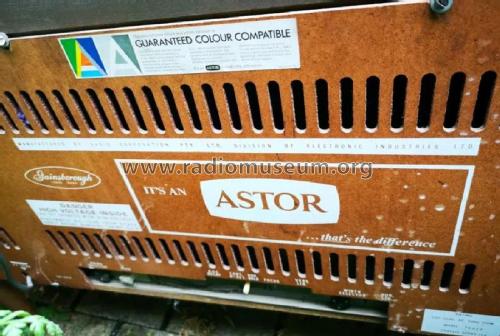

Image is from the collection of Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1968 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 5: 6GV8 6CM5 6AL3 1S2 AW59-11W
Semiconductors (the count is only for transistors) 16: AT342 AT342 AT338 AT343 AT343 AT343 AT338 AT321 AT321 AT350 AT321 AT321 AT321 AT318 AT321 AT350 AD4004 AD4004 AD4004 AD4004 AZ-069 1N295 1N66 1N66 AD411 1N295 1N295
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Granada 23" TB023 Ch= Series 11A - Astor brand, Radio Corporation
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 56.75 x 16.25 x 30 inch / 1441 x 413 x 762 mm
Mentioned in -- Original prospect or advert (Astor Sales Brochure)

Model page created by Martin Kent. See "Data change" for further contributors.
