Granada TB023 Ch= 8A or 11A

Granada TB023 Ch= 8A or 11A; Astor brand, Radio (ID = 2005317) TV Radio
Granada TB023 Ch= 8A or 11A; Astor brand, Radio (ID = 2005315) TV Radio Granada TB023 Ch= 8A or 11A; Astor brand, Radio (ID = 2005316) TV Radio
Use red slider bar for more.
Granada TB023 Ch= 8A or 11A; Astor brand, Radio (ID = 2005315) TV Radio

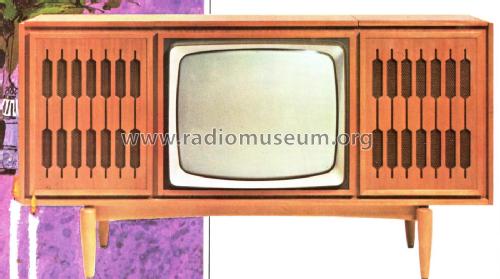

Astor brand, Radio: Granada TB023 Ch= 8A or 11A [TV Radio] ID = 2005315 1400x782
Select picture or schematic to display from thumbnails on the right and click for download.
For model Granada TB023 Ch= 8A or 11A, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Image from the collection of Andrew McCallum

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1968 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 10: 6HG8 6GK5 6Y9 6U9 6X9 6GV8 6JW8 6CM5 6AL3 1S2 25RVP4/300
Semiconductors (the count is only for transistors) 13: 1N3194 1N3194 1N3194 1N3194 1N66 1N66 1N295 BA100 BA100
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Granada TB023 Ch= 8A or 11A - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 56.75 x 16.25 x 30 inch / 1441 x 413 x 762 mm
Notes

Astor Granada is a 3 in 1 TV Radio Gramo combination. Radio & amplifier section is solid-state with 13 transistors, but transistor types presently unknown. Valve count is for the TV section only.

Mentioned in -- Original prospect or advert (Sales brochure)
Literature/Schematics (1) - - Manufacturers Literature (Astor manufacturers service data)
Literature/Schematics (2) JR Television Service Handbook Page A69b

Model page created by Martin Kent. See "Data change" for further contributors.
