Mickey De-Luxe JPM

Mickey De-Luxe JPM; Astor brand, Radio (ID = 1980093) Radio

Mickey De-Luxe JPM; Astor brand, Radio (ID = 1980094) Radio
Mickey De-Luxe JPM; Astor brand, Radio (ID = 960568) Radio Mickey De-Luxe JPM; Astor brand, Radio (ID = 1277053) Radio

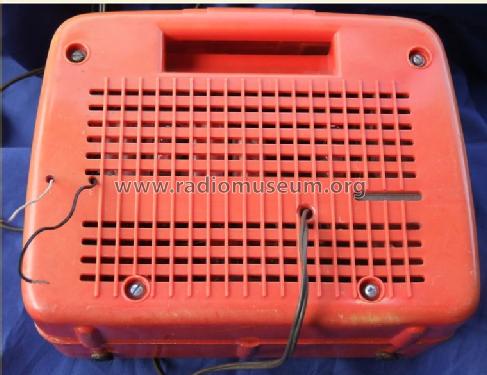

Mickey De-Luxe JPM; Astor brand, Radio (ID = 1277054) Radio
Use red slider bar for more.
Mickey De-Luxe JPM; Astor brand, Radio (ID = 960568) Radio

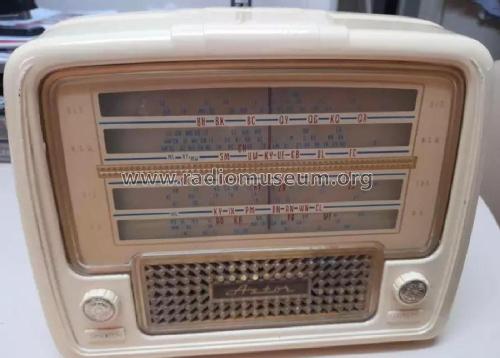

Astor brand, Radio: Mickey De-Luxe JPM [Radio] ID = 960568 439x358
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mickey De-Luxe JPM, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Ebay #230598294667

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BH5 6BD7 6M5 6V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Mickey De-Luxe JPM - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

This model uses permeability tuning.

Colours available are: Brown, Maroon, Pale Blue, Red & Ivory.

Price in first year of sale 24.15 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIII
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletins JPM-1, 18/8/1954 & JPM-2, 26/11/1954.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A57.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 36.)

Model page created by Peter Hughes. See "Data change" for further contributors.
