JSM

JSM; Astor brand, Radio (ID = 2058979) Television
JSM; Astor brand, Radio (ID = 2058980) Television
Use red slider bar for more.
JSM; Astor brand, Radio (ID = 2058980) Television
Astor brand, Radio: JSM [Television] ID = 2058980 1400x1655
Select picture or schematic to display from thumbnails on the right and click for download.
For model JSM, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

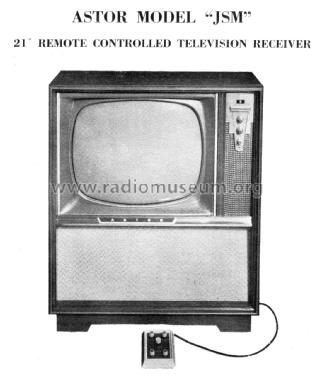

Image from service manual cover. Courtesy of Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: 6CW7 6BL8 6BX6 6BX6 6BX6 6BX6 6DX8 6BX6 6BX6 6BM8 6CS6 12AU7 6BX6 6CW5 12AU7 6CM5 6AL3 1S2 21CEP4
Semiconductors (the count is only for transistors) 1N295 1N67 1N66 1N66 1N294 1N294 1N294 CK935 or. 1N1763 CK935 or. 1N1763
Main principle Superhet with RF-stage; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker 2 Loudspeakers / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: JSM - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This is a 21" B&W television set that tuned the ten then standard Australian VHF channels.  This model has a wired remote control and a motorized rotary tuner.

"This receiver utilizes a model DSK chassis incorporating minor circuit modifications to accept a REMOTE CONTROL UNIT and push bar channel selector on the receiver."

Colours available: Maple, Walnut & Mahogany.

Literature/Schematics (1) J. R. Publications "Television Service Handbook" L.J. Series Vol. 1, 1962, Page A55.
Literature/Schematics (2) - - Manufacturers Literature (Technical Bulletin Astor Model JSM-1, 1/6/1959.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
