KN; Astor brand, Radio (ID = 2373708) Radio

KN; Astor brand, Radio (ID = 2373710) Radio

KN; Astor brand, Radio (ID = 2373711) Radio

KN; Astor brand, Radio (ID = 2373712) Radio
Use red slider bar for more.
KN; Astor brand, Radio (ID = 2373708) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1C7G 1M5G 1M5G 1K7G 1L5G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: KN - Astor brand, Radio Corporation
Material Bakelite case
Shape Tablemodel, low profile (big size).
Notes

This model uses a synchronous vibrator power unit.

Bakelite cabinet type M2, Astor part no. 59/81, the same used on models JJ, FP & LJ.

Price in first year of sale 33.75 AUS £

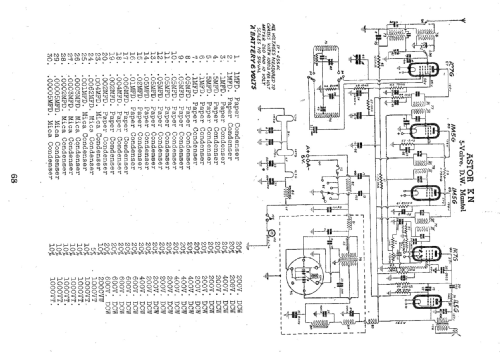

Circuit diagram reference Australian Official Radio Service Manual Vol. VI
Mentioned in Mingay's "Radio Diagram & I.F. Index
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin KN-1, 17/4/47, KN-2 (Issue 2), 2/4/48 & KN-3 (Issue 2), 20/4/48.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 68.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
