Langdon 25" L51C/9-DF Ch= Series 9

Langdon 25' L51C/9-DF Ch= Series 9; Astor brand, Radio (ID = 2006797) Television

Langdon 25' L51C/9-DF Ch= Series 9; Astor brand, Radio (ID = 2006798) Television

Langdon 25' L51C/9-DF Ch= Series 9; Astor brand, Radio (ID = 2006799) Television

Langdon 25' L51C/9-DF Ch= Series 9; Astor brand, Radio (ID = 2006800) Television
Use red slider bar for more.
Langdon 25' L51C/9-DF Ch= Series 9; Astor brand, Radio (ID = 2006797) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1967 Category: Television Receiver (TV) or Monitor
Valves / Tubes 8: 6HG8 6GK5 6GW8 6GV8 6CM5 6AL3 1S2 25RTP4
Semiconductors (the count is only for transistors) 15: BF167 BF173 BF173 BF115 BF115 SE1002 BF178 SE1002 SE1002 SE1002 SE1002 SE1002 AT1138 SE1002 BF178 1N3194 1N3194 1N3194 1N3194 1N3194 1N3194 1N3194 1N295 1N66 1N66 BA100 BA100 1N295 1N295
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Langdon 25" L51C/9-DF Ch= Series 9 - Astor brand, Radio Corporation
Material Wooden case
Shape Console with any shape - in general
Notes

This 25" TV tunes the standard Australian 13 VHF channels.

Literature/Schematics (1) - - Manufacturers Literature (Astor Series 9 Data Sheet.)

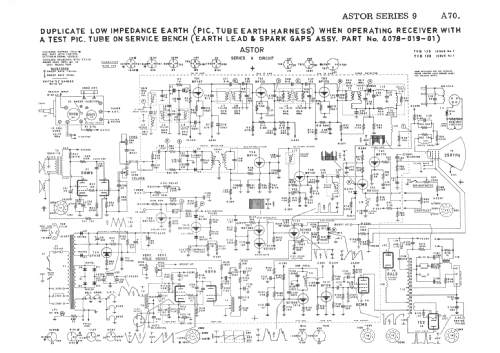

Literature/Schematics (2) -- Schematic (J. R. Publications "Television Service Handbook" page A70)

Model page created by Martin Kent. See "Data change" for further contributors.



All listed radios etc. from Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
Here you find 822 models, 301 with images and 340 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




rmXorg
