Mickey Mouse EG; Astor brand, Radio (ID = 1991633) Radio
Astor brand, Radio: Mickey Mouse EG [Radio] ID = 1991633 927x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mickey Mouse EG, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
eBay advertisement by seller “mlls007”, Item Number 222107187759. Seller assumes all responsibility for this listing.. Seller assumes all responsibility for this listing. Please contact Radio Museum to provide more complete photo credit information or request removal”.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner

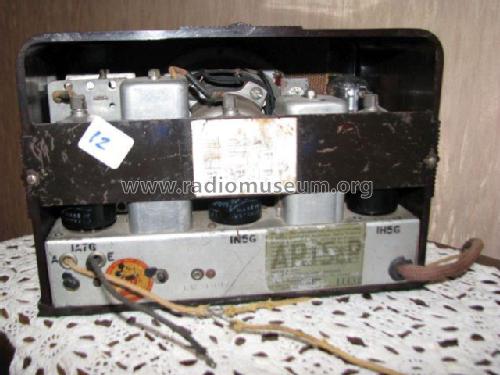

Valves / Tubes 4: 1A7G 1N5G 1H5G 1A5G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 90/2 X 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mickey Mouse EG - Astor brand, Radio Corporation

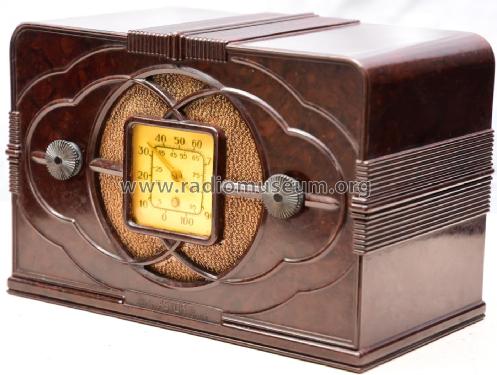

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).

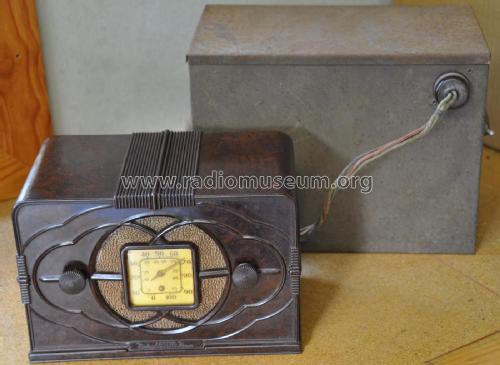

Notes This model came in a small mantel type case with a separate battery box. The price below included the battery box and a set of dry batteries.
Price in first year of sale 16.00 Aus£
External source of data AORSM CD

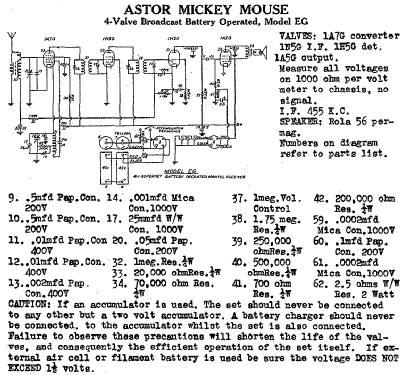

Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Smith, R. Just Astor ISBN 0957909217
Literature/Schematics (2) Australian Official Radio Service Manual Vol. III, Page 26

Model page created by Peter Hughes. See "Data change" for further contributors.
