Featherlite RQ

Featherlite RQ; Astor brand, Radio (ID = 1634425) Radio

Featherlite RQ; Astor brand, Radio (ID = 1634426) Radio
Featherlite RQ; Astor brand, Radio (ID = 1405645) Radio Featherlite RQ; Astor brand, Radio (ID = 1405640) Radio
Featherlite RQ; Astor brand, Radio (ID = 1405641) Radio Featherlite RQ; Astor brand, Radio (ID = 1405642) Radio
Featherlite RQ; Astor brand, Radio (ID = 1405643) Radio Featherlite RQ; Astor brand, Radio (ID = 1405644) Radio
Featherlite RQ; Astor brand, Radio (ID = 1405646) Radio Featherlite RQ; Astor brand, Radio (ID = 1405647) Radio
Featherlite RQ; Astor brand, Radio (ID = 1405648) Radio Featherlite RQ; Astor brand, Radio (ID = 1405649) Radio
Use red slider bar for more.

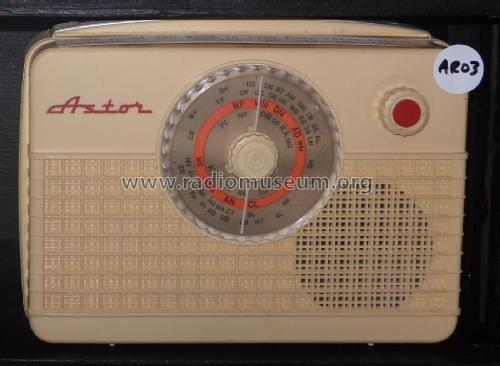

Featherlite RQ; Astor brand, Radio (ID = 1405645) Radio
Astor brand, Radio: Featherlite RQ [Radio] ID = 1405645 933x865
Select picture or schematic to display from thumbnails on the right and click for download.
For model Featherlite RQ, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 67.5 & 1,5 Volt

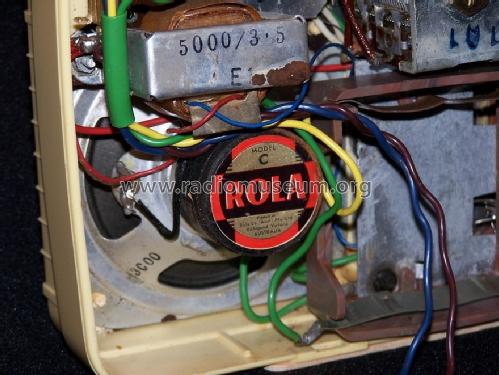

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.1 W (0.18 W max.)
from Radiomuseum.org Model: Featherlite RQ - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 222 x 155 x 70 mm / 8.7 x 6.1 x 2.8 inch
Notes

Batteries used: Eveready types D50 (D cells) & 467.

Colours available: Brown, Maroon, Pale Blue, Red, Cream, Powder Blue, Fawn, Green & Grey.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 24.15 AUS £
Mentioned in Australian Silicon Chip Magazine, August 2000: The Astor RQ - the Lady's handbag radio
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin Model RQ-1, 15/11/1955)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A70.)
Literature/Schematics (3) J.R. Publications Radio Service Handbook R.V. Series Vol. 1, 1963, Page A70.

Model page created by Bruce Wilkie. See "Data change" for further contributors.
