Oversea-er BD

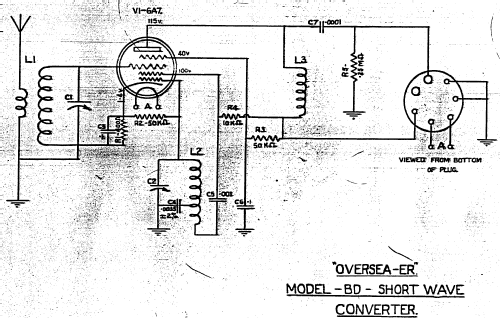

Oversea-er BD; Astor brand, Radio (ID = 1779333) Converter

Oversea-er BD; Astor brand, Radio (ID = 1779334) Converter
Oversea-er BD; Astor brand, Radio (ID = 1692101) Converter
Use red slider bar for more.
Oversea-er BD; Astor brand, Radio (ID = 1692101) Converter
Astor brand, Radio: Oversea-er BD [Converter] ID = 1692101 900x1295
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oversea-er BD, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
As advertised in "west Australian Wireless News" December 14, 1935

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1936 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 1: 6A7
Main principle Superheterodyne (common); ZF/IF 560 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oversea-er BD - Astor brand, Radio Corporation
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

This is a short wave converter that is designed to plug into the following Astor radios via 7 pin socket;

  • Mickey Mouse model EC
  • Mickey Grand and Mickey Midget with chassis type DH.
Mentioned in Mingay's "Radio Diagram & I.F. Index
Literature/Schematics (1) HRSA Astor Book Vol.2, Page 68

Model page created by Stuart Irwin. See "Data change" for further contributors.
