Royal 25' TB036 Ch= Series 8

Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 283103
    • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Royal 25' TB036 Ch= Series 8 - Astor brand, Radio Corporation
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 29.75 x 57.25 x 18 inch / 756 x 1454 x 457 mm
  • Notes

  • Royal 25" TB036 is a combination 3 in 1 TV/Radio/Gram unit.
    Missing database for 23RVP4/300

  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Astor Series 8 Service Data Sheet.)
  • Literature/Schematics (2)

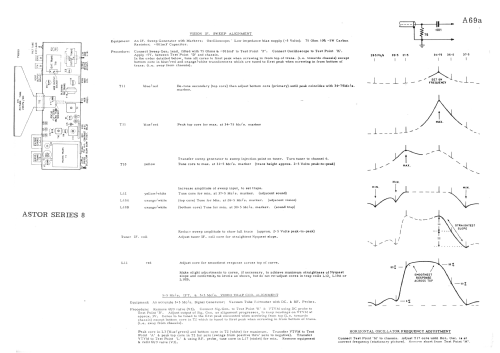

  • -- Schematic (J. R. Publications "Television Service Handbook" page A69a)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
