Sherwood 24" Wideboy TD063 Ch= Series 11

Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

  • Year
  • 1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 283077
    • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 230-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sherwood 24" Wideboy TD063 Ch= Series 11 - Astor brand, Radio Corporation
  • Notes
  • 24"' CRT type unknown

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Astor Series 11 Data Sheets)
  • Literature/Schematics (2)

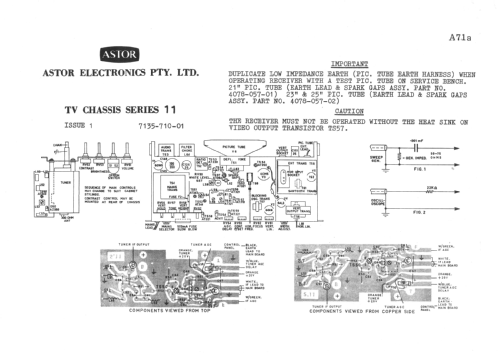

  • -- Schematic (J. R. Publications "Television Service Handbook" page A71a.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
