Sundowner TF112 Ch= C3 (Philips)
Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Year
- 1971–1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298707
-
- alternative name: Radio Corp.of Australia

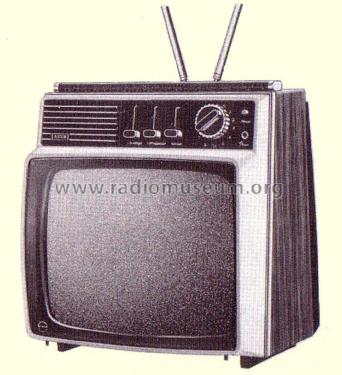

From brochure, courtesy of Andrew McCallum.
- Number of Tubes
- 1
- Valves / Tubes
- A31-20W
- Number of Transistors
- 35
- Semiconductors
- BF200 BF182 BF183 BC158 BF198 BF194 BF198 BF199 BC148 BC149 BF195 BF195 BC148 BC158 BC338 BC328 BC148 BC148 BC148 BC148 BC148 BF336 OC9468 AD149 BC148 BC148 BC148 BC158 BC337 BC338 BD136 BC148 BC147 BC328 40440 OA90 BA217 BA217 BA217 BY126 OA626 OA626 BZX79 BA217 BA218 BA218 BA218 OA626 BA218 BA218 BZX79 BYX55 BY127 BY127
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 220-250/12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Sundowner TF112 Ch= C3 - Astor brand, Radio Corporation
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12.75 x 13.5 x 12 inch / 324 x 343 x 305 mm
- Notes
-
Astor Model TF112 "Sundowner" 12" AC/Battery
Fully transistorised for low power consumption on battery or AC-mains. Slider controls, clip-on anti-glare screen, twin telescopic aerials, slide-away handle, socket for earphone or tape recorder. Cord storage compartment. Pushbutton switch on. Marviplate cabinet available in teak woodgrain and charcoal. (MINGAY'S PRICE SERVICE)
- Net weight (2.2 lb = 1 kg)
- 21 lb 0 oz (21 lb) / 9.534 kg
- Price in first year of sale
- 239.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1972 to Feb 1974.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Astor Service Manual, November 1973.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group 17, 1974/75, Page P1-6.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
