Ranger Transistor 8 PE-032

Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2054239) Radio

Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2054240) Radio

Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2054241) Radio
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2515666) Radio Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2515667) Radio
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 719384) Radio Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 719385) Radio
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 719386) Radio Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 719383) Radio
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2057986) Radio Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2430826) Radio
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2430827) Radio Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2430828) Radio
Use red slider bar for more.
Ranger Transistor 8 PE-032; Astor brand, Radio (ID = 2515666) Radio

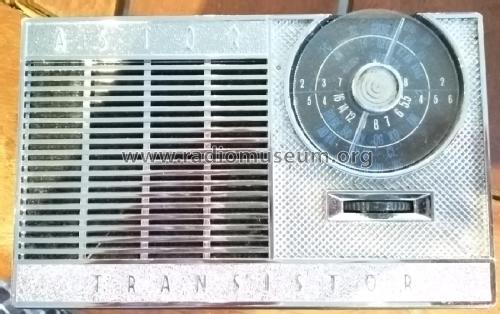

Astor brand, Radio: Ranger Transistor 8 PE-032 [Radio] ID = 2515666 1400x880
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ranger Transistor 8 PE-032, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: A06 A06 A06 A06 A09 A08 A08 A06 A08 A06
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / Parallel 2 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Ranger Transistor 8 PE-032 - Astor brand, Radio Corporation
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 95 x 40 mm / 6.1 x 3.7 x 1.6 inch
Notes This model has the curiosity of being marketed as a "Transistor 8" but contains 10 transistors.
Net weight (2.2 lb = 1 kg) 0.480 kg / 1 lb 0.9 oz (1.057 lb)
Mentioned in HRSA Radio Waves January 2010
Literature/Schematics (1) - - Manufacturers Literature (Service Data Astor Model PE032-1, 1/9/1970)
Literature/Schematics (2) -- Schematic (J.R. Publications Transistor Service Handbook Group G8, 1971 & 1972, Page A103.)

Model page created by Roger Brinkman. See "Data change" for further contributors.
