DR-102U

DR-102U ; Astra, Canada (ID = 201413) Radio

DR-102U ; Astra, Canada (ID = 2551160) Radio
DR-102U ; Astra, Canada (ID = 554751) Radio DR-102U ; Astra, Canada (ID = 1412161) Radio
DR-102U ; Astra, Canada (ID = 600824) Radio DR-102U ; Astra, Canada (ID = 2248926) Radio
DR-102U ; Astra, Canada (ID = 554750) Radio DR-102U ; Astra, Canada (ID = 1412164) Radio
DR-102U ; Astra, Canada (ID = 266445) Radio DR-102U ; Astra, Canada (ID = 554749) Radio
DR-102U ; Astra, Canada (ID = 581752) Radio DR-102U ; Astra, Canada (ID = 581753) Radio
Use red slider bar for more.
DR-102U ; Astra, Canada (ID = 554751) Radio
Astra, Canada: DR-102U [Radio] ID = 554751 717x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model DR-102U, Astra, Canada:

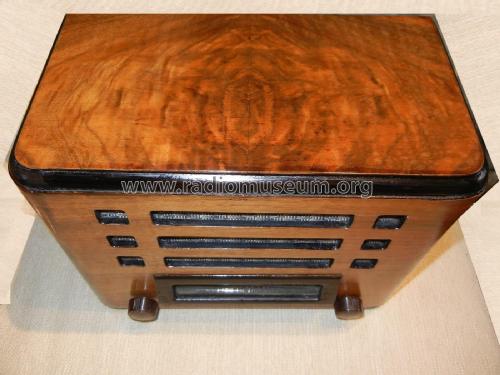

Canadian Astra DR-102U top view picture courtesy of Christopher Ross, Ponoka, Ontario, Canada.

Country:  Canada
Manufacturer / Brand:  Astra, Canada
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: DR-102U - Astra, Canada
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.5 x 9 x 7 inch / 318 x 229 x 178 mm
Notes

The Canadian Brand and Millen "Astra" model DR-102U is a 5-tube table radio. This model was produced with at least 3 different cabinet variations all based on the same chassis and schematic.

Mentioned in Radios of Canada; Swackhammer (Page 17)
Literature/Schematics (1) Radio College of Canada, Individual Circuit Service, 1927-1953

Model page created by Vitor Oliveira. See "Data change" for further contributors.
