• Country
• United States of America (USA)

• Manufacturer / Brand
• Astron Corporation; Irvine (CA)

• Year
• 1987 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 335587

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• TIP29 2N3771 2N3771 2N3771 2N3771 2N3906

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Variable Regulated Linear Power Supply VS-35M - Astron Corporation; Irvine CA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 5.5 x 11 inch / 279 x 140 x 279 mm

• Notes

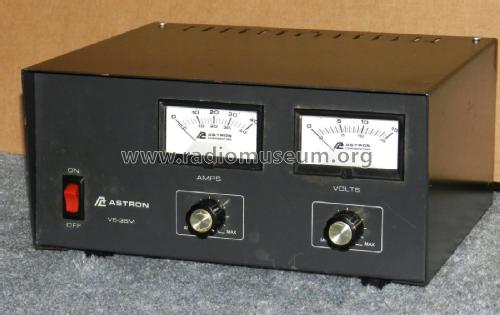

• The Astron VS-35M is a variable regulated linear power supply.  Controls on the front panel allow setting both voltage level and current limiting.  Meters for both voltage and current are included. According to Astron, it is capable of 25 amps continuous and 35 amps intermittent at a 50% duty cycle. That current handling is true only at the rated full 14 volts output like the fixed-voltage Astron versions RS-35A and the RS-35M with which it shares nearly all of its circuitry and components. At lesser voltages, the maximum current is de-rated since the pass transistors must take up any excess voltage at a given current. At 10 volts, the supply is rated at 15 amps continuous and at 5 volts the rating is reduced to 7 amps.

• Net weight (2.2 lb = 1 kg)
• 22 lb (22 lb 0 oz) / 9.988 kg

• Author
• Model page created by Rich Post. See "Data change" for further contributors.
