Switching Power Supply SS-25

Switching Power Supply SS-25; Astron Corporation; (ID = 2087869) Power-S Switching Power Supply SS-25; Astron Corporation; (ID = 2087870) Power-S

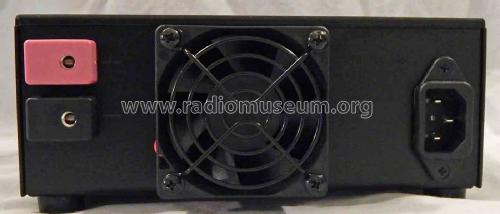

Switching Power Supply SS-25; Astron Corporation; (ID = 2087871) Power-S Switching Power Supply SS-25; Astron Corporation; (ID = 2087872) Power-S
Switching Power Supply SS-25; Astron Corporation; (ID = 2087873) Power-S Switching Power Supply SS-25; Astron Corporation; (ID = 2087874) Power-S
Switching Power Supply SS-25; Astron Corporation; (ID = 2087875) Power-S
Use red slider bar for more.
Switching Power Supply SS-25; Astron Corporation; (ID = 2087869) Power-S
Astron Corporation;: Switching Power Supply SS-25 [Power-S] ID = 2087869 1400x704
Select picture or schematic to display from thumbnails on the right and click for download.
For model Switching Power Supply SS-25, Astron Corporation; Irvine (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Astron Corporation; Irvine (CA)
Year: 1995 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50-60 Hz, 100-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Switching Power Supply SS-25 - Astron Corporation; Irvine CA
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 7 x 2.75 x 9 inch / 178 x 70 x 229 mm
Notes

The Astron SS-25 is a switching power supply with an output of 13.8 VDC and 20 amps continuous (25 amps peak at 33% duty cycle).

Net weight (2.2 lb = 1 kg) 4.2 lb (4 lb 3.2 oz) / 1.907 kg
Price in first year of sale 139.95 USD

Model page created by Wayne Childress. See "Data change" for further contributors.
