ARP-153

ARP-153; Atlantic, Hong Kong (ID = 703164) Radio
Use red slider bar for more.
ARP-153; Atlantic, Hong Kong (ID = 703164) Radio

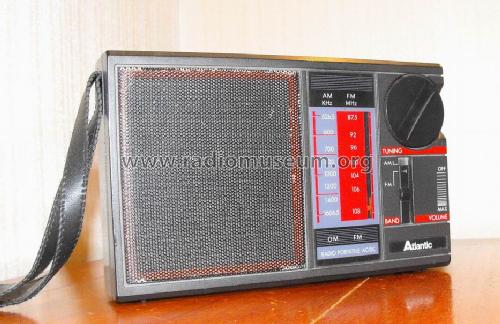

Atlantic, Hong Kong: ARP-153 [Radio] ID = 703164 933x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model ARP-153, Atlantic, Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Atlantic, Hong Kong
Year: 1990 ? Category: Broadcast Receiver - or past WW2 Tuner
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: ARP-153 - Atlantic, Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 208 x 130 x 50 mm / 8.2 x 5.1 x 2 inch
Notes 1 x circuito integrato HY1083-2B.

Model page created by Giuseppe Duello. See "Data change" for further contributors.
