4700 Model 10C compact

• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1924

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74577

• Picture

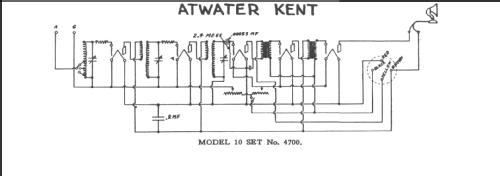

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A or UV200 UV201A UV201A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: 4700 Model 10C compact - Atwater Kent Mfg. Co.;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 26 x 5.9 x 10.2 inch / 660 x 150 x 259 mm

• Notes

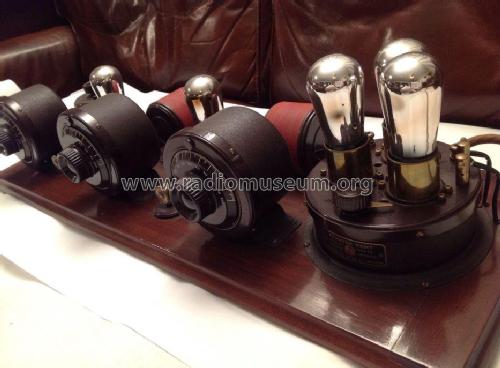

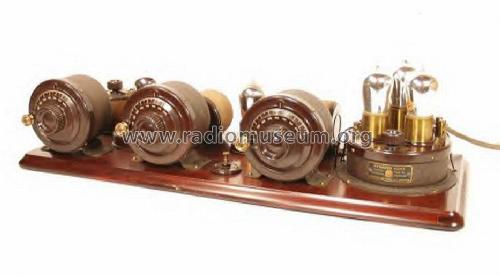

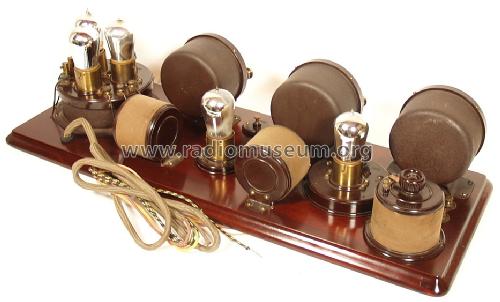

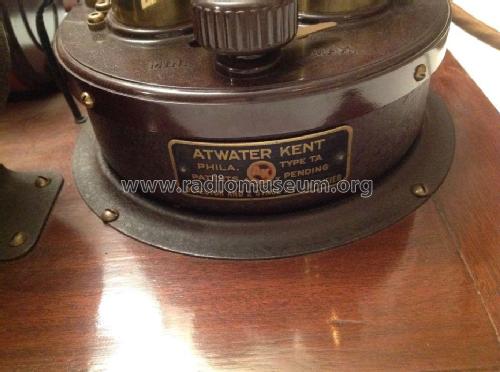

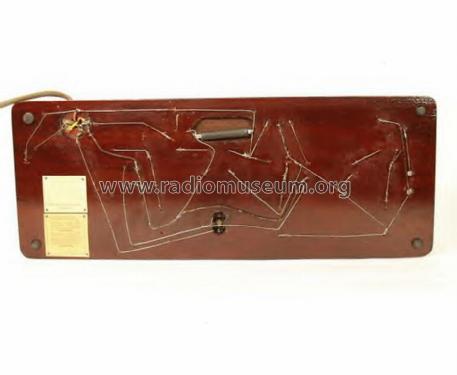

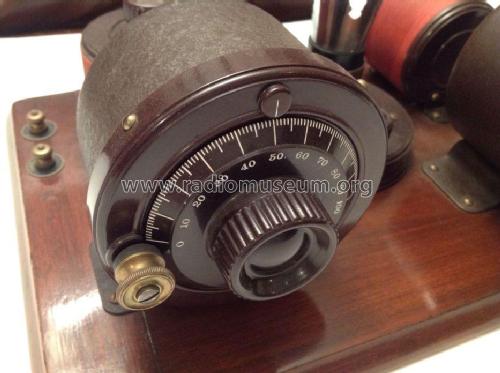

• Breadboard on a still shorter board (ca. 4 inch less than standard 4700) with splined ends; orthogonally mounted coils; potentiometer (of 10B) removed ;

• Price in first year of sale
• 85.00 $

• Source of data
• A.Atwater Kent, The Man, 2002

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Radio Manufacturers of the 1920s, Vol 1

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
