206 ; Atwater Kent Mfg. Co (ID = 16779) Radio
206 ; Atwater Kent Mfg. Co (ID = 1653227) Radio 206 ; Atwater Kent Mfg. Co (ID = 2336619) Radio
206 ; Atwater Kent Mfg. Co (ID = 367898) Radio 206 ; Atwater Kent Mfg. Co (ID = 367899) Radio
206 ; Atwater Kent Mfg. Co (ID = 681363) Radio 206 ; Atwater Kent Mfg. Co (ID = 258339) Radio
206 ; Atwater Kent Mfg. Co (ID = 377880) Radio 206 ; Atwater Kent Mfg. Co (ID = 377885) Radio
206 ; Atwater Kent Mfg. Co (ID = 681364) Radio 206 ; Atwater Kent Mfg. Co (ID = 2359930) Radio
Use red slider bar for more.
206 ; Atwater Kent Mfg. Co (ID = 1653227) Radio

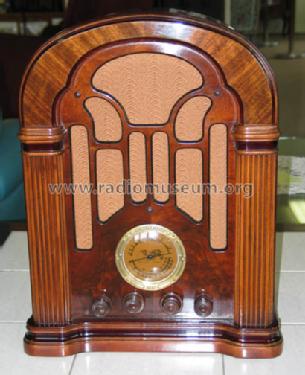

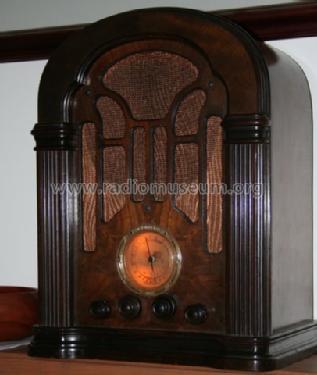

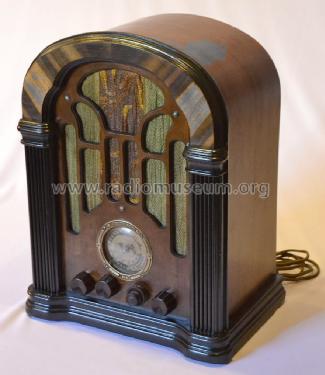

Atwater Kent Mfg. Co: 206 [Radio] ID = 1653227 883x1017
Select picture or schematic to display from thumbnails on the right and click for download.
For model 206, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 2A7 58 2A6 2A5 80
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3.3 W (unknown quality)
from Radiomuseum.org Model: 206 - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 14 x 18 x 9.5 inch / 356 x 457 x 241 mm
Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)
Price in first year of sale 50.00 $
External source of data E. Erb 3-907007-36-0

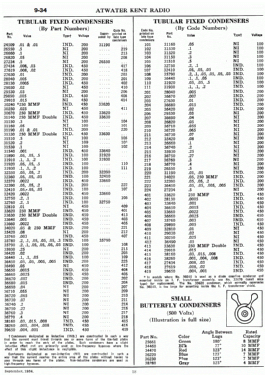

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Machine Age to Jet Age (Vol. 1) (National Geographic, October 1934 advertising)
Literature/Schematics (1) Cathedral & Tombstone Radios (page 57.)
