Atwater Kent Mfg. Co: 246 [Radio] ID = 2298232 1400x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model 246, Atwater Kent Mfg. Co.; Philadelphia, USA:

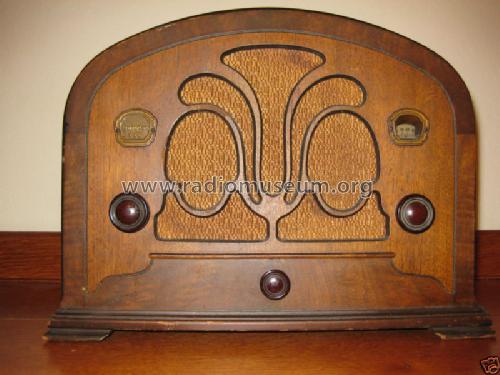

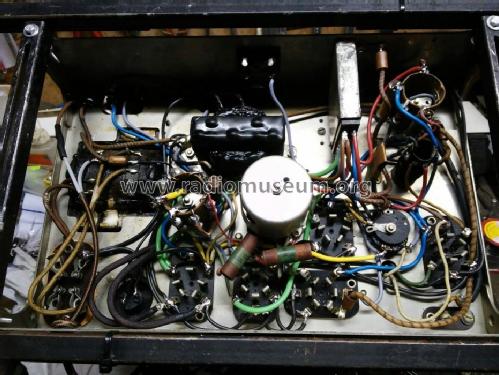

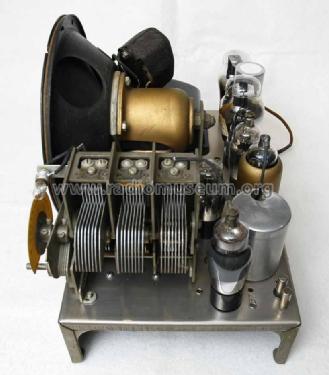

Atwater Kent mantel radio model 246

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner

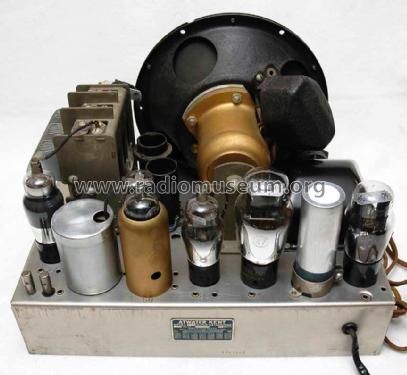

Valves / Tubes 6: 57 56 58 55 47 80
Main principle Superheterodyne (common); ZF/IF 262 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 246 - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 15 x 11.5 x 9.5 inch / 381 x 292 x 241 mm
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
External source of data E. Erb 3-907007-36-0
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Collector's Guide to Antique Radios (6th edition) (Thali)
Literature/Schematics (1) Machine Age to Jet Age II (page 69.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 58.)
