• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33235

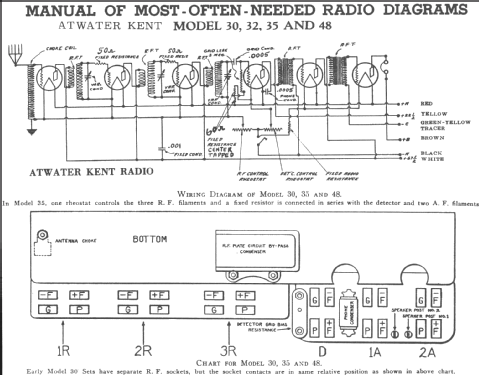

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9040 Model 30 Console [Pooley 2000-R-2] - Atwater Kent Mfg. Co.;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 22.5 x 31.25 x 17.5 inch / 572 x 794 x 445 mm

• Notes

• Also in other cabinets.

• Price in first year of sale
• 160.00 $ +

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (2)
• Radio Manufacturers of the 1920s, Vol 1 (Page 72)
