8270 Model 32 Table model

8270 Model 32; Atwater Kent Mfg. Co (ID = 84504) Radio

8270 Model 32; Atwater Kent Mfg. Co (ID = 1625963) Radio

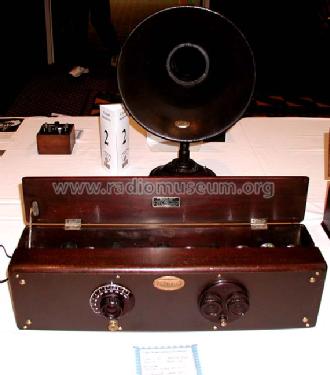

8270 Model 32; Atwater Kent Mfg. Co (ID = 50675) Radio 8270 Model 32; Atwater Kent Mfg. Co (ID = 266504) Radio

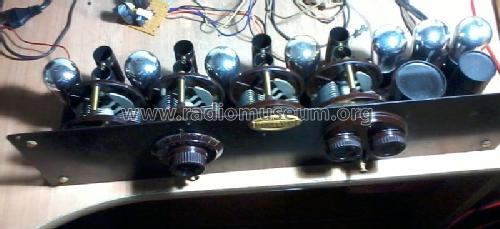

8270 Model 32; Atwater Kent Mfg. Co (ID = 1383771) Radio 8270 Model 32; Atwater Kent Mfg. Co (ID = 1383772) Radio
Use red slider bar for more.

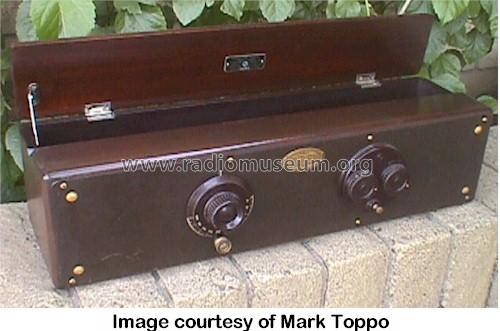

8270 Model 32; Atwater Kent Mfg. Co (ID = 50675) Radio
Atwater Kent Mfg. Co: 8270 Model 32 [Radio] ID = 50675 500x331
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8270 Model 32 Table model, Atwater Kent Mfg. Co.; Philadelphia, USA:
Atwater-Kent Model 32 (1926) Copyright by Lynn Toppo Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX201A UX201A UX201A UX201A UX201A or UX200A or UX112 UX201A UX171 or UX112
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 8270 Model 32 [Table model] - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes One dial (primary tuning control knob)
Price in first year of sale 140.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (1) A.Atwater Kent, The Man, 2002
