• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33262

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 264 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Wooden case
  • from Radiomuseum.org

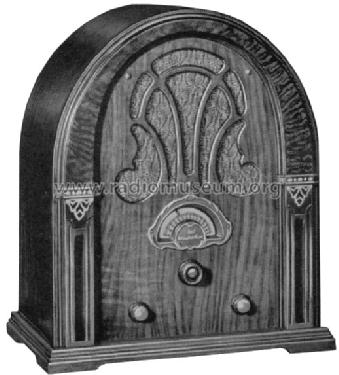

  • Model: 387 [early=below 7873966] - Atwater Kent Mfg. Co.;
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 16.5 x 19 x 10.5 inch / 419 x 483 x 267 mm
  • Price in first year of sale
  • 45.00 USD
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
