47 ; Atwater Kent Mfg. Co (ID = 870412) Radio
Atwater Kent Mfg. Co: 47 [Radio] ID = 870412 933x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 47, Atwater Kent Mfg. Co.; Philadelphia, USA:
Atwater Kent 47 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 26 26 26 26 27 26 CX112A or 71A CX112A or 71A 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 47 - Atwater Kent Mfg. Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 21 x 8 x 11.5 inch / 533 x 203 x 292 mm
Notes One dial (primary tuning control knob)
Price in first year of sale 100.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

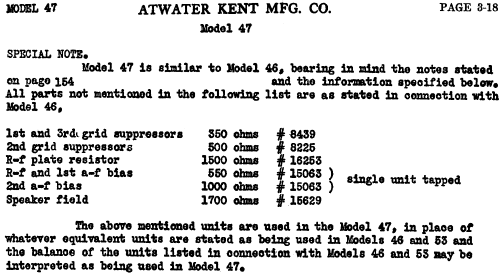

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to Antique Radios 4. Edition (Rider's Perpetual, Volume 3 = 1933 and before)


All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
Here you find 503 models, 323 with images and 325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
