49 9860; Atwater Kent Mfg. Co (ID = 56970) Radio
Atwater Kent Mfg. Co: 49 9860 [Radio] ID = 56970 444x130
Select picture or schematic to display from thumbnails on the right and click for download.
For model 49 9860, Atwater Kent Mfg. Co.; Philadelphia, USA:

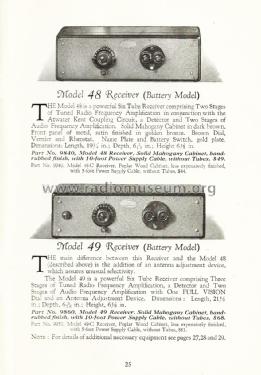

Atwater-Kent Model 49 (1928) Copyright by Art Hoch Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UX201A UX201A UX201A UX201A or UX200A or 12A UX201A 12A or 71A
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 49 9860 - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 21 x 6 x 6.5 inch / 533 x 152 x 165 mm
Notes

One dial (primary tuning control knob)

Net weight (2.2 lb = 1 kg) 7.7 kg / 16 lb 15.4 oz (16.96 lb)
Price in first year of sale 68.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 01, 1926-1938
