• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33353

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 264 kHz
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8.5 inch = 21.6 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 735 - Atwater Kent Mfg. Co.;
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 14 x 18.5 x 9.75 inch / 356 x 470 x 248 mm
  • Notes
  • Dial : AK Co. # 29121

  • Net weight (2.2 lb = 1 kg)
  • 13.6 kg / 29 lb 15.3 oz (29.956 lb)
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
  • Literature/Schematics (3)

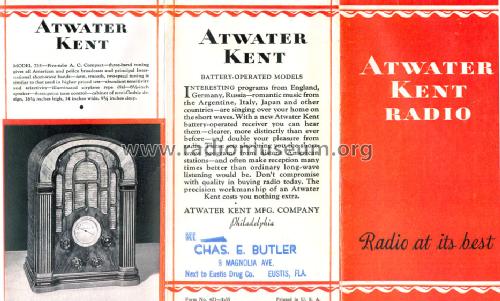

  • Atwater Kent Folder No. 421 for 1935.
