• Year
  • 1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18390

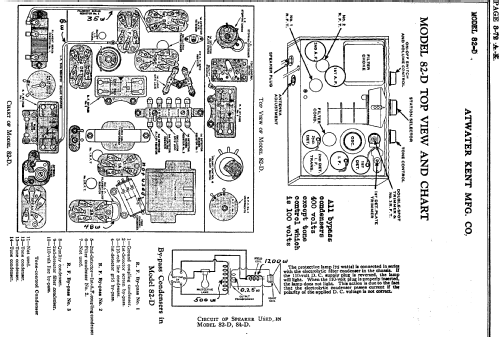

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 130 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Direct Current supply (DC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 82D 82-D [Type 1 and 2] - Atwater Kent Mfg. Co.;
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 16 x 19 x 10 inch / 406 x 483 x 254 mm
  • Notes
  • Type 1 below, Type 2 above Ser.No. 5760301 Power consumption 80W.

    See also the similar Atwater Kent model 82 with automatic volume control or model 82-Q for battery operation.



  • Price in first year of sale
  • 74.80 $
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Rider's Perpetual, Volume 3 = 1933 and before
  • Literature/Schematics (3)
  • Atwater Kent Folder No. 103, 7-1931
