99-P Tonebeam Phono Highboy

Atwater Kent Mfg. Co.; Philadelphia, USA

  • Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33399

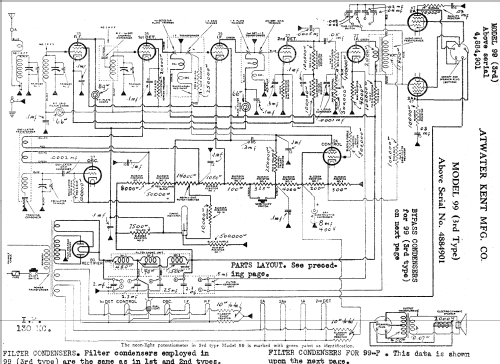

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 130 kHz
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 99-P Tonebeam Phono Highboy - Atwater Kent Mfg. Co.;
  • Shape
  • Console, Highboy (legs > 50 %).
  • Notes
  • Several chassis versions (1, 2, and 3) which differ in minor circuitry / component changes.
    Tonebeam is the neon tuning indicator tube.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 3 = 1933 and before
