4660 Model 9C Compact Var.Cond.tuned

4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447679) Radio 4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 128511) Radio
4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 128514) Radio 4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 128512) Radio
4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 128513) Radio 4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 718876) Radio
4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447680) Radio 4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447681) Radio
4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447682) Radio 4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447683) Radio
Use red slider bar for more.
4660 Model 9C Compact; Atwater Kent Mfg. Co (ID = 1447679) Radio
Atwater Kent Mfg. Co: 4660 Model 9C Compact [Radio] ID = 1447679 933x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4660 Model 9C Compact Var.Cond.tuned, Atwater Kent Mfg. Co.; Philadelphia, USA:

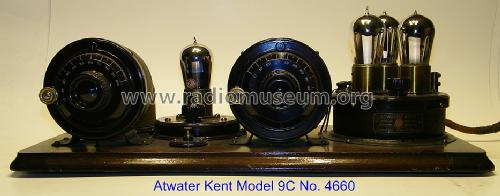

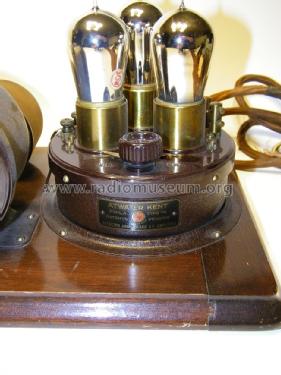

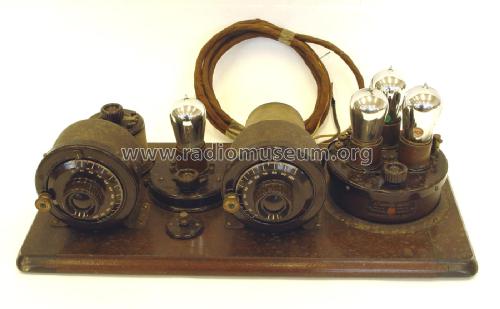

Atwater Kent Model 9C No. 4660

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UV201A UV201A or UV200 UV201A UV201A

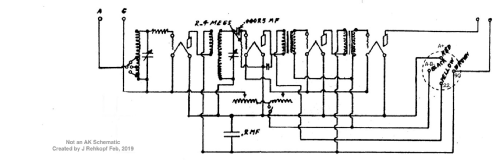

schematic requested
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 4660 Model 9C Compact [Var.Cond.tuned] - Atwater Kent Mfg. Co.;
Material Wooden case, TUBES VISIBLE.
Shape Miscellaneous shapes - described under notes.
Notes

Breadboard. Two dials (primary tuning control knobs) ; this later version with (2)var.cond. and (2)coils (either parallel or orthogonally mounted); regeneration possible (though not designed for) through plate coupling using a very good front tube;

Price in first year of sale 65.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (1) A.Atwater Kent, The Man, 2002 (and Bunis 4)
