Chassis 260-F Tonebeam Type 2 above 8.422.101

Chassis 260-F Tonebeam Type 2; Atwater Kent Mfg. Co (ID = 770373) Radio

Chassis 260-F Tonebeam Type 2; Atwater Kent Mfg. Co (ID = 770375) Radio
Chassis 260-F Tonebeam Type 2; Atwater Kent Mfg. Co (ID = 682438) Radio Chassis 260-F Tonebeam Type 2; Atwater Kent Mfg. Co (ID = 682439) Radio
Use red slider bar for more.
Chassis 260-F Tonebeam Type 2; Atwater Kent Mfg. Co (ID = 682438) Radio

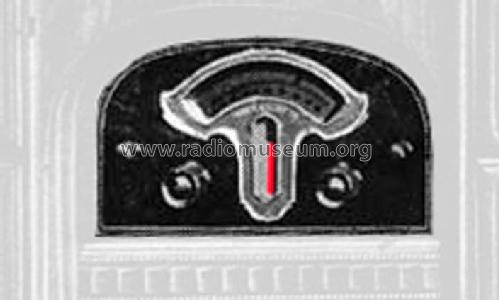

Atwater Kent Mfg. Co: Chassis 260-F Tonebeam Type 2 [Radio] ID = 682438 706x425

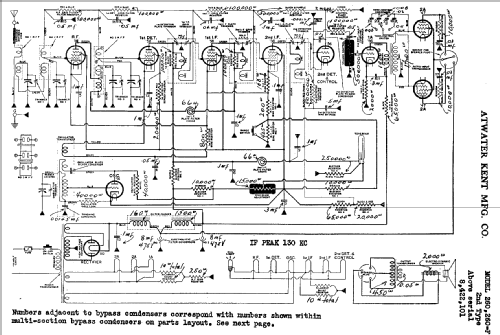

Select picture or schematic to display from thumbnails on the right and click for download.
For model Chassis 260-F Tonebeam Type 2 above 8.422.101, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 58 58 56 58 58 56 56 47 47 80 Tonebeam
Main principle Superhet with RF-stage; ZF/IF 130 kHz
Tuned circuits 11 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Chassis 260-F Tonebeam Type 2 [above 8.422.101] - Atwater Kent Mfg. Co.;
Material Metal case
Shape Chassis only or for «building in»
Notes Tonebeam is the neon tuning indicator tube.
Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before (p.3-157)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
