D2 Chassis

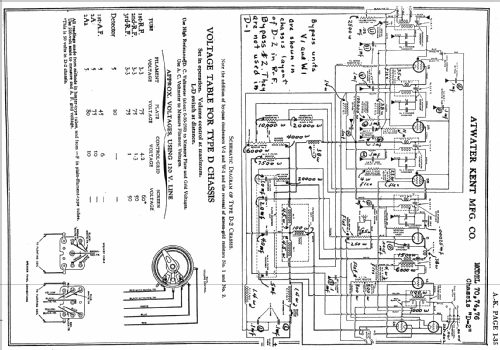

D2 Chassis; Atwater Kent Mfg. Co (ID = 84512) Radio

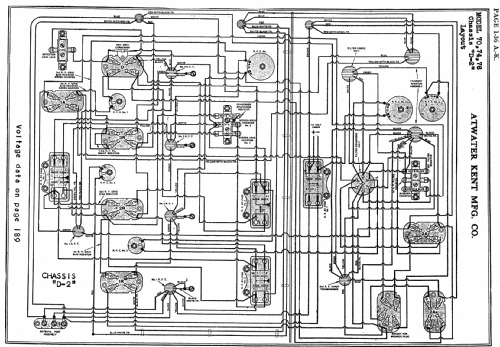

D2 Chassis; Atwater Kent Mfg. Co (ID = 84513) Radio
D2 Chassis; Atwater Kent Mfg. Co (ID = 2298773) Radio D2 Chassis; Atwater Kent Mfg. Co (ID = 2298774) Radio
D2 Chassis; Atwater Kent Mfg. Co (ID = 2298775) Radio D2 Chassis; Atwater Kent Mfg. Co (ID = 2298776) Radio
Use red slider bar for more.
D2 Chassis; Atwater Kent Mfg. Co (ID = 2298773) Radio
Atwater Kent Mfg. Co: D2 Chassis [Radio] ID = 2298773 1400x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model D2 Chassis, Atwater Kent Mfg. Co.; Philadelphia, USA:
chassis from personal collection

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UX222 UX222 UX222 UX112 UX112 UX171 UX171
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Direct Current supply (DC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: D2 Chassis - Atwater Kent Mfg. Co.;
Material Metal case
Shape Chassis only or for «building in»
Notes

for Console models: 70 / 74 / 76; Photos not here, only at relevant cabinet page !

The type D chassis uses a type N-3 Atwater Kent speaker, a variation of the type N speaker but having a 650 ohm field resistance.  The difference between the D1 and D2 chassis is the swapping of screen grid resistors only.

External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
