For model E3 9810, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1928 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: E3 9810 - Atwater Kent Mfg. Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 335 x 115 mm / 11.2 x 13.2 x 4.5 inch
Notes

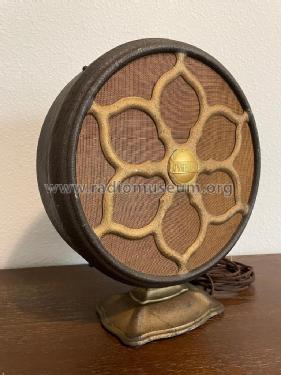

Table model with single edge cone and gold grille cloth. Metal base and frame.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 80.00 $
Source of data -- Original prospect or advert
Mentioned in Radio Manufacturers of the 1920s, Vol 1 (Classic Cones Buford and Jane Chidester - Page 16)
Literature/Schematics (1) Douglas - Page 85
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (ad October 1928 page 29)

Model page created by Jean-Luc Comblin. See "Data change" for further contributors.
