Early Model 20 Model 5A

Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 2309533) Radio Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 2309534) Radio
Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 2309536) Radio Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 2309535) Radio

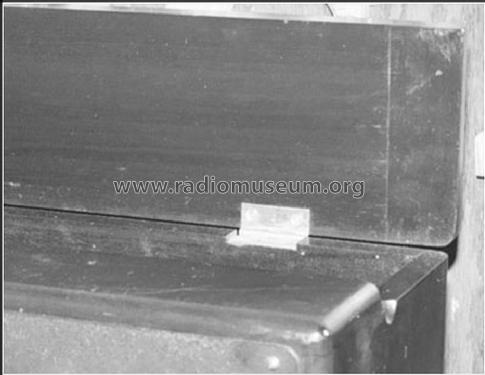

Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 1047913) Radio Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 1047912) Radio
Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 1047914) Radio
Use red slider bar for more.
Early Model 20 Model 5A; Atwater Kent Mfg. Co (ID = 2309533) Radio
Atwater Kent Mfg. Co: Early Model 20 Model 5A [Radio] ID = 2309533 622x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model Early Model 20 Model 5A, Atwater Kent Mfg. Co.; Philadelphia, USA:
..subito.it/hobby-collezionismo/radio-antica-atwater-kent-verona-268291007.htm?last=1

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Early Model 20 Model 5A - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The Atwater Kent 5A Big Box TRF receiver was an early version of what would become the AK 20 Big Box. This particular set had larger RF coils that were arranged slightly different than on the common AK 20 Big Box. The "5A" has nothing to do with the model 5!

Model page created by Alan Larsen. See "Data change" for further contributors.
