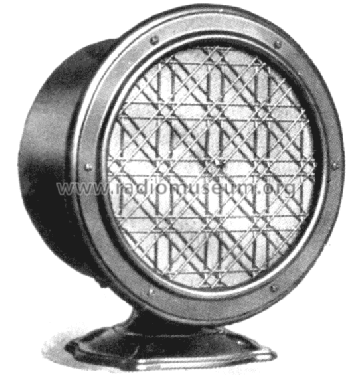

F2 table speaker

F2 table speaker; Atwater Kent Mfg. Co (ID = 1043366) Speaker-P F2 table speaker; Atwater Kent Mfg. Co (ID = 566057) Speaker-P
F2 table speaker; Atwater Kent Mfg. Co (ID = 1043367) Speaker-P F2 table speaker; Atwater Kent Mfg. Co (ID = 1043368) Speaker-P
F2 table speaker; Atwater Kent Mfg. Co (ID = 1505866) Speaker-P F2 table speaker; Atwater Kent Mfg. Co (ID = 1505867) Speaker-P
F2 table speaker; Atwater Kent Mfg. Co (ID = 1505868) Speaker-P F2 table speaker; Atwater Kent Mfg. Co (ID = 1505869) Speaker-P
F2 table speaker; Atwater Kent Mfg. Co (ID = 1505870) Speaker-P F2 table speaker; Atwater Kent Mfg. Co (ID = 2097002) Speaker-P
Use red slider bar for more.
F2 table speaker; Atwater Kent Mfg. Co (ID = 1043366) Speaker-P
Atwater Kent Mfg. Co: F2 table speaker [Speaker-P] ID = 1043366 450x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model F2 table speaker, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1929 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 28 cm = 11 inch
Power out
from Radiomuseum.org Model: F2 table speaker - Atwater Kent Mfg. Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.6 x 13.1 x 0 inch / 295 x 333 x 0 mm
Notes For a 25 cycle AC-Receiver supplying DC field current as the AK models 55F; Resistance of Field 1700 Ohm.
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Source of data - - Manufacturers Literature

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
