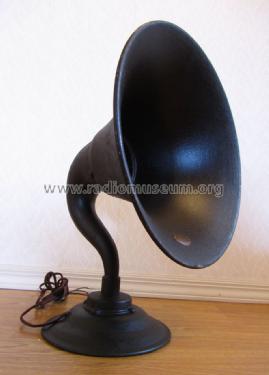

4645 L; Atwater Kent Mfg. Co (ID = 463688) Speaker-P
Atwater Kent Mfg. Co: 4645 L [Speaker-P] ID = 463688 276x362
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4645 L, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1924 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Loudspeaker Horn / Ø 36.8 cm = 14.5 inch
Power out
from Radiomuseum.org Model: 4645 L - Atwater Kent Mfg. Co.;
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 14 x 19.5 x 11 inch / 356 x 495 x 279 mm
Notes The color was dark brown. Base Diameter: 8-1/2.Bell Diameter: 14-1/2. Base Material: steel. Bell Material:steel. Neck material:iron. Height: 19-1/4. Logo Color: brown. Neck to Bell screws: back to front. All dimensions are in inches. Logos are located on the bell…(Radio Horn Speaker Encyclopedia Floyd A. Paul). The Model L horn speaker was a smaller, 19 inches tall, and cheaper version of the M. It featured a pot metal driver housing which "grew" with age making the driver freeze in place. The bell was not removable on the L speaker.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Collectors' prices
Mentioned in Radio Horn Speaker Encyclopedia Floyd A.Paul - Pages 10,11

Model page created by Jean-Luc Comblin. See "Data change" for further contributors.
