• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33358

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UY224 UY224 UY224 UY227 UY227 UX245 UX245 UX280

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: L1 Chassis - Atwater Kent Mfg. Co.;

• Shape
• Chassis only or for «building in»

• Notes

• For Console models: 70 / 74 / 76; Photos not here, only at relevant cabinet page !

  The 1st style of Type L chassis (below No. 6,234,881) is termed Type L-1, and the 2nd style (above No. 6,234,881) is termed L-2.

• Net weight (2.2 lb = 1 kg)
• 34 lb (34 lb 0 oz) / 15.436 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Literature/Schematics (1)
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)

• Literature/Schematics (2)

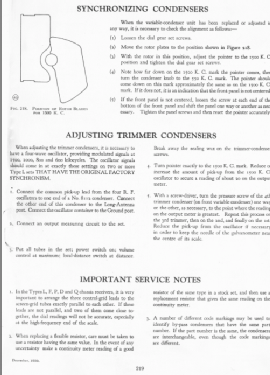

• - - Manufacturers Literature (Atwater Kent Service Manual Dec. 1930 p.217-256)
