L2 Chassis; Atwater Kent Mfg. Co (ID = 84506) Radio

L2 Chassis; Atwater Kent Mfg. Co (ID = 84507) Radio
L2 Chassis; Atwater Kent Mfg. Co (ID = 369506) Radio L2 Chassis; Atwater Kent Mfg. Co (ID = 369507) Radio
L2 Chassis; Atwater Kent Mfg. Co (ID = 369508) Radio L2 Chassis; Atwater Kent Mfg. Co (ID = 369510) Radio
L2 Chassis; Atwater Kent Mfg. Co (ID = 369511) Radio
Use red slider bar for more.
L2 Chassis; Atwater Kent Mfg. Co (ID = 369506) Radio

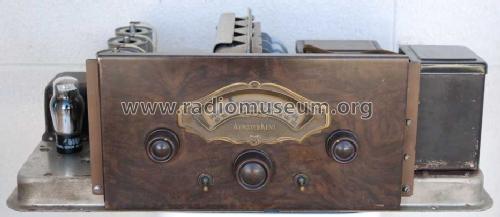

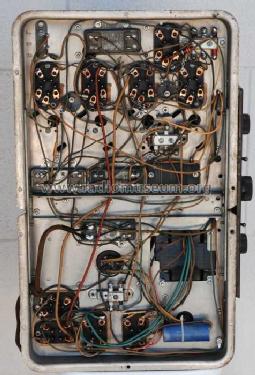

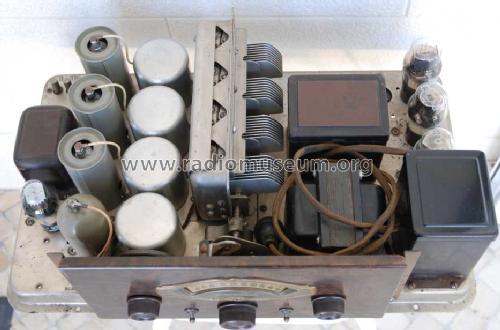

Atwater Kent Mfg. Co: L2 Chassis [Radio] ID = 369506 933x406
Select picture or schematic to display from thumbnails on the right and click for download.
For model L2 Chassis, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 27 27 45 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt

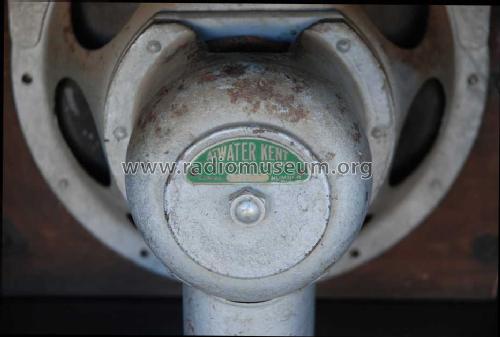

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 28 cm = 11 inch
Power out
from Radiomuseum.org Model: L2 Chassis - Atwater Kent Mfg. Co.;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 520 x 310 x 170 mm / 20.5 x 12.2 x 6.7 inch
Notes For Console models: 70 / 74 / 76; Photos not here, only at relevant cabinet page !
Net weight (2.2 lb = 1 kg) 25.2 kg / 55 lb 8.1 oz (55.507 lb)
External source of data Ernst Erb

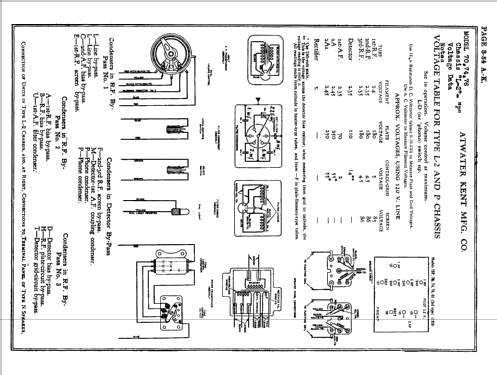

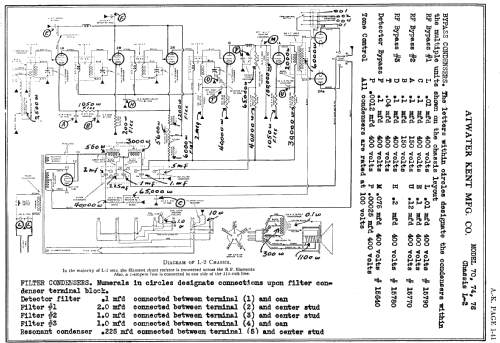

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before


All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
Here you find 503 models, 323 with images and 325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
