Model K Cone Speaker

Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2094819) Speaker-P Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2094818) Speaker-P
Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2094820) Speaker-P Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405916) Speaker-P
Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405917) Speaker-P Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405918) Speaker-P
Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405919) Speaker-P Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405920) Speaker-P
Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2405921) Speaker-P
Use red slider bar for more.
Model K Cone Speaker ; Atwater Kent Mfg. Co (ID = 2094819) Speaker-P
Atwater Kent Mfg. Co: Model K Cone Speaker [Speaker-P] ID = 2094819 1240x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model K Cone Speaker, Atwater Kent Mfg. Co.; Philadelphia, USA:
Atwater Kent Model K Cone Speaker sold by Ebay Seller: gifarmer Ebay Item: 142269535002 on 17 Feb 2017

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1925 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Model K Cone Speaker - Atwater Kent Mfg. Co.;
Dimensions (WHD) 11.5 x 13 x 6 inch / 292 x 330 x 152 mm
Notes

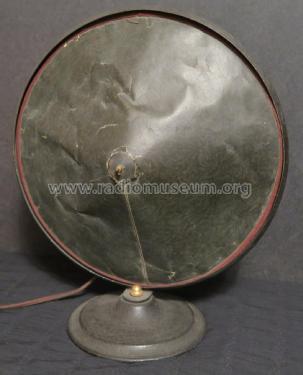

Atwater Kent Model K cone speaker.  Documentation or advertising related to this speaker is practically non-existent.  This model was Atwater Kent's first attempt at offering a paper cone speaker.  It was very quickly superseded by their Model E speaker which could produce much more volume.  Patent US1794855A for the Model K was filed May 26, 1925.  The driver has an adjustment lever and its impedance is approximately 2000 ohms.

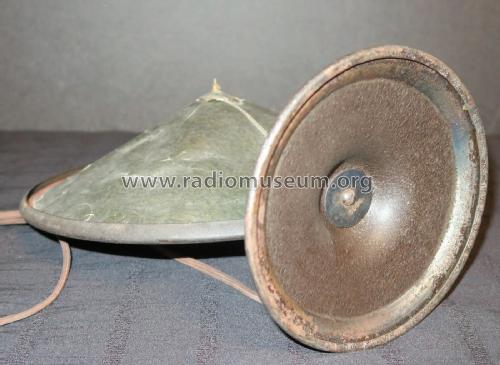

Two varieties of original paper cones have been found, one with green marbling on both sides of the paper and one with brown marbling on both sides of the paper.

Collectors' prices

Model page created by Lindsay Shepherd. See "Data change" for further contributors.
