P Chassis; Atwater Kent Mfg. Co (ID = 1774778) Radio

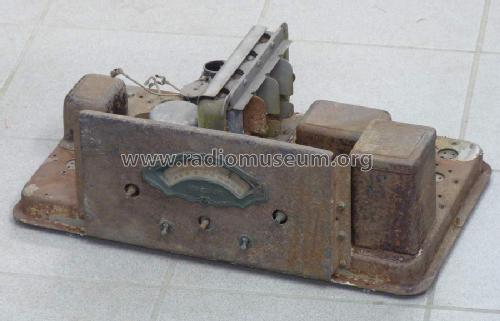

Atwater Kent Mfg. Co: P Chassis [Radio] ID = 1774778 900x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model P Chassis, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24 24 24 27 27 45 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: P Chassis - Atwater Kent Mfg. Co.;
Material Metal case
Shape Chassis only or for «building in»
Notes For Console models: 70 / 74 / 76; Photos not here, only at relevant cabinet page !
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before


All listed radios etc. from Atwater Kent Mfg. Co.; Philadelphia, USA
Here you find 503 models, 323 with images and 325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
