4-Valve Receiving Set

4-Valve Receiving Set ; Aucklands Wireless, (ID = 1536025) Radio 4-Valve Receiving Set ; Aucklands Wireless, (ID = 1536026) Radio
Use red slider bar for more.
4-Valve Receiving Set ; Aucklands Wireless, (ID = 1536025) Radio
Aucklands Wireless,: 4-Valve Receiving Set [Radio] ID = 1536025 933x493
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4-Valve Receiving Set, Aucklands Wireless, London:

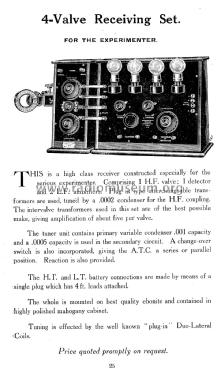

January 1923, G-Z Auckland Wireless Catalog page 25

Country:  Great Britain (UK)
Manufacturer / Brand:  Aucklands Wireless, London
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: R_Marconi R_Marconi R_Marconi R_Marconi
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 4-Valve Receiving Set - Aucklands Wireless, London
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

4-Valve Receiving set for the experimenter. One-stage RF, Detector and Two-Stages Audio.

Mentioned in January 1923, G-Z Auckland Wireless Catalog page 25

Model page created by Alan Larsen. See "Data change" for further contributors.
