2-Way Speaker System EV 35

2-Way Speaker System EV 35; Audax; Montreuil (ID = 1881910) Speaker-P 2-Way Speaker System EV 35; Audax; Montreuil (ID = 1881911) Speaker-P
2-Way Speaker System EV 35; Audax; Montreuil (ID = 1881913) Speaker-P
Use red slider bar for more.
2-Way Speaker System EV 35; Audax; Montreuil (ID = 1881910) Speaker-P
Audax; Montreuil: 2-Way Speaker System EV 35 [Speaker-P] ID = 1881910 1400x2051
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-Way Speaker System EV 35, Audax; Montreuil:
Audax Katalog 1977

Country:  France
Manufacturer / Brand:  Audax; Montreuil
Year: 1977 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 2-Way Speaker System EV 35 - Audax; Montreuil
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 270 x 460 x 225 mm / 10.6 x 18.1 x 8.9 inch
Notes

Audax 2-Way Speaker System Model EV 35.
35 Watts, 8 ohms
70 - 20000Hz +/-4dB
1x Woofer (Wide) 200mm
1x Tweeter 25mm Dome


Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

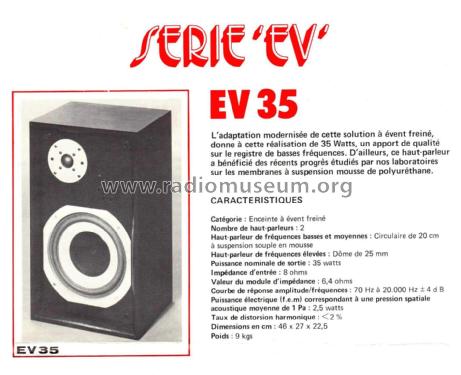

Mentioned in -- Original prospect or advert (AUDAX - Enceintes Acoustiques - Nouveautes 77)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Audax; Montreuil
Here you find 20 models, 19 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
