3-Way Speaker System A 360

3-Way Speaker System A 360; Audax; Montreuil (ID = 1881880) Speaker-P 3-Way Speaker System A 360; Audax; Montreuil (ID = 1881881) Speaker-P
Use red slider bar for more.
3-Way Speaker System A 360; Audax; Montreuil (ID = 1881880) Speaker-P
Audax; Montreuil: 3-Way Speaker System A 360 [Speaker-P] ID = 1881880 1400x2092
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-Way Speaker System A 360, Audax; Montreuil:
Audax Katalog 1977

Country:  France
Manufacturer / Brand:  Audax; Montreuil
Year: 1977 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3-Way Speaker System A 360 - Audax; Montreuil
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 405 x 750 x 370 mm / 15.9 x 29.5 x 14.6 inch
Notes

Audax Closed Way Speaker System Model A 360.
60 Watts, 8 ohms
55 - 20000Hz +/-4dB
Woofer elliptical 210x320mm
Midrange 37,5mm Dome
Tweeter 25mm Dome


Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)

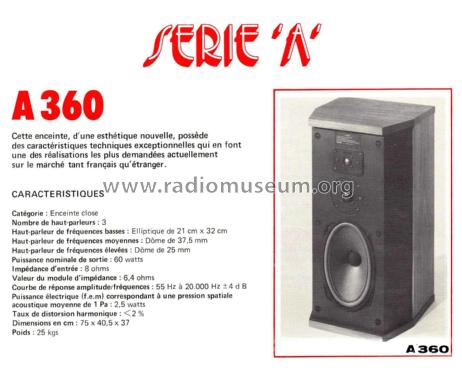

Mentioned in -- Original prospect or advert (AUDAX - Enceintes Acoustiques - Nouveautes 77)

Model page created by Franz Scharner. See "Data change" for further contributors.
