3-Way Speaker System EV 55

3-Way Speaker System EV 55; Audax; Montreuil (ID = 1881914) Speaker-P 3-Way Speaker System EV 55; Audax; Montreuil (ID = 1881915) Speaker-P
3-Way Speaker System EV 55; Audax; Montreuil (ID = 1881916) Speaker-P
Use red slider bar for more.
3-Way Speaker System EV 55; Audax; Montreuil (ID = 1881914) Speaker-P
Audax; Montreuil: 3-Way Speaker System EV 55 [Speaker-P] ID = 1881914 1400x1994
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-Way Speaker System EV 55, Audax; Montreuil:
Audax Katalog 1977

Country:  France
Manufacturer / Brand:  Audax; Montreuil
Year: 1977 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3-Way Speaker System EV 55 - Audax; Montreuil
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 320 x 610 x 280 mm / 12.6 x 24 x 11 inch
Notes

Audax 3-Way Speaker System Model EV 55.
55 Watts, 8 ohms
60 - 20000Hz +/-4dB
1x Woofer 245mm
1x Midrange 37,5mm Dome
1x Tweeter 25mm Dome


Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

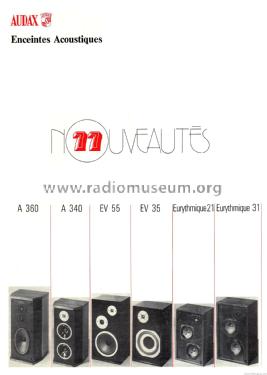

Mentioned in -- Original prospect or advert (AUDAX - Enceintes Acoustiques - Nouveautes 77)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Audax; Montreuil
Here you find 20 models, 19 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
