Full Range Speaker System with Amplifier AT-SP3

Full Range Speaker System with Amplifier AT-SP3; Audio-Technica (ID = 1681475) Speaker-P Full Range Speaker System with Amplifier AT-SP3; Audio-Technica (ID = 1681476) Speaker-P

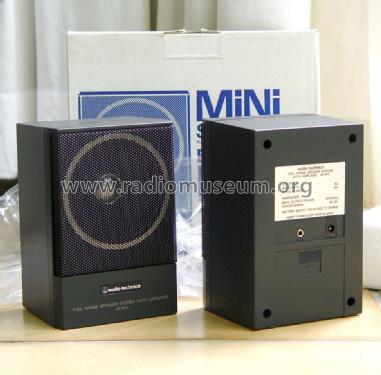

Full Range Speaker System with Amplifier AT-SP3; Audio-Technica (ID = 1681477) Speaker-P Full Range Speaker System with Amplifier AT-SP3; Audio-Technica (ID = 1681478) Speaker-P
Use red slider bar for more.

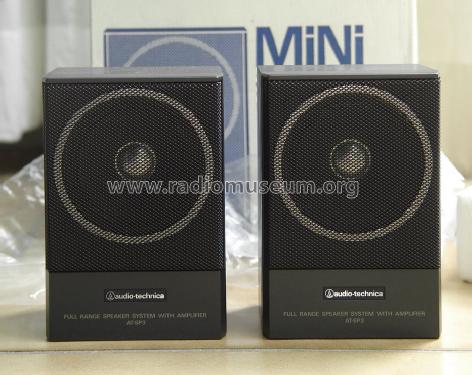

Full Range Speaker System with Amplifier AT-SP3; Audio-Technica (ID = 1681475) Speaker-P
Audio-Technica: Full Range Speaker System with Amplifier AT-SP3 [Speaker-P] ID = 1681475 933x741
Select picture or schematic to display from thumbnails on the right and click for download.
For model Full Range Speaker System with Amplifier AT-SP3, Audio-Technica Corporation, Tokio:
Ebay auction by user terrabids 261522904824

Country:  Japan
Manufacturer / Brand:  Audio-Technica Corporation, Tokio
Year: 1983 Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Batteries / addl. power jack / 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (max.)
from Radiomuseum.org Model: Full Range Speaker System with Amplifier AT-SP3 - Audio-Technica Corporation,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Notes

Made in Japan.

Model page created by a member from A. See "Data change" for further contributors.
