Ultratone 1040
Audio Industries (brand Ultratone); Michigan City, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Audio Industries (brand Ultratone); Michigan City, IN
- Year
- 1955 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 136899
Sams photofact Set 319 folder 15 date 6-56.

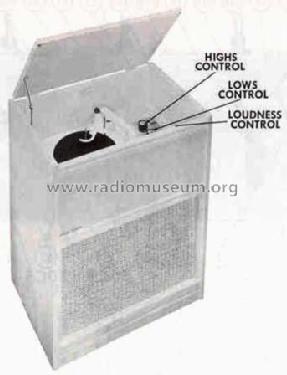

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117 = 105 to 125 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultratone 1040 - Audio Industries brand
- Shape
- Console with any shape - in general
- Notes
-
Sams photofact, set 319, folder 15, date 6-56, features the Audio Industries models 1001 and 1040 as the same schematic.
AC Operated Phono Amplifier With 3 Speed Automatic Recor Changer.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 319 folder 15 date 6-56)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
