C16L
Use red slider bar for more.
Audiola; Paris: C16L [Radio] ID = 538748 933x305
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1949 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 16: 6K7 ECH3 6K7 6K7 6Q7 6Q7 6AF7 6K7 6K7 6V6 6V6 5Y3 5Y3 5Y3 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 472 kHz |
|---|---|
| Tuned circuits | 9 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and more than two Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-245 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: C16L - Audiola; Paris |
| Shape | Miscellaneous shapes - described under notes. |
| Notes | 1 étage H.F, 2 étages M.F, sélectivité variable. 2 amplificateurs B.F, Grave 12W, Aigu 4W. La configuration complète se compose de trois unités: le récepteur/amplificateur, le alimentation et le haut-parleur. |
| Literature/Schematics (1) | Toute la Radio 1950 |

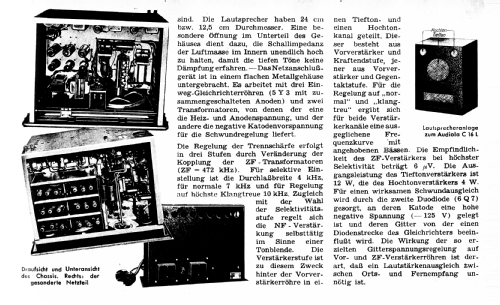

| Literature/Schematics (2) | Funk-Technik (FT) (9/1950, S. 270 f.) |
Model page created by Raynal Aufils. See "Data change" for further contributors.
All listed radios etc. from Audiola; Paris
Here you find 16 models, 13 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
