P50
Use red slider bar for more.

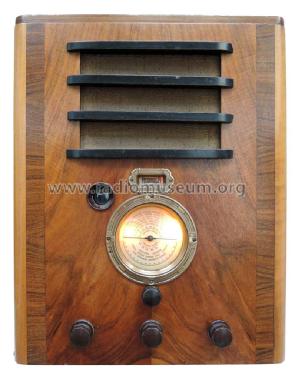

Audiola; Paris: P50 [Radio] ID = 2356875 800x1012
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: |
|---|
| Main principle | Super-Heterodyne (Super in general) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: P50 - Audiola; Paris |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 350 x 470 x 230 mm / 13.8 x 18.5 x 9.1 inch |
| Notes | Le numéro du type n'est pas certain. |
| Net weight (2.2 lb = 1 kg) | 10 kg / 22 lb 0.4 oz (22.026 lb) |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
